HT extension leads are the simple accessory that allow you to take accurate secondary ignition measurements on COP ignition systems.
HT extension leads are the simple accessory that allow you to take accurate secondary ignition measurements on COP ignition systems.

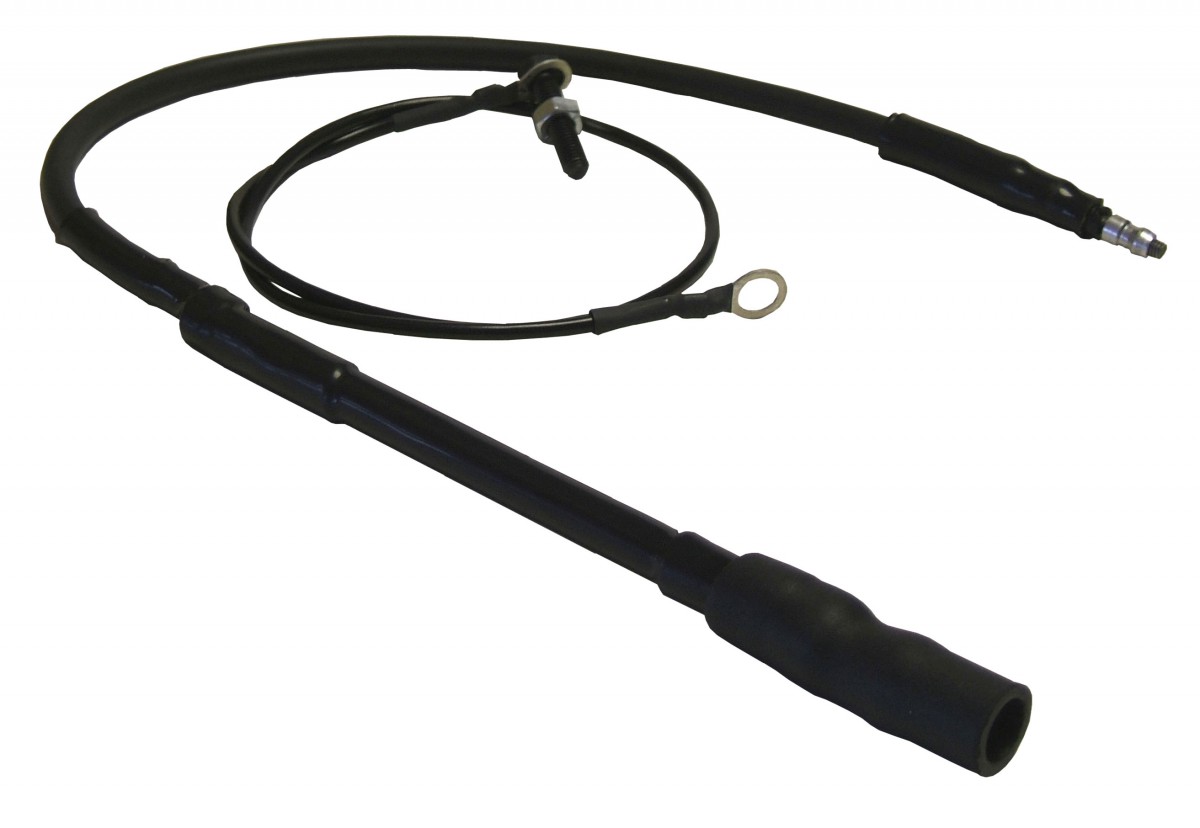

HT extension leads are designed to aid diagnostics on secondary ignition circuits by allowing an HT measurement to be made when there is no, or limited, access to any spark plug leads. The leads are specifically designed for use with the PP178 Secondary Ignition Pickup.
HT extension leads are easy to use: simply fit them between the coil pack and the plugs, place a capacitive secondary ignition pickup on each lead, and your scope will show accurate ignition waveforms with correct kV measurements.
HT extension leads are designed for use with PicoScope automotive scopes, but can also be used on all other labscopes that are capable of displaying ignition patterns.
Pencil coils
NOTE: Please read and follow these instructions. Failing to comply with these user notes could result in expensive electrical components being damaged.
These coils are very popular on modern vehicles and either push fit directly over the spark plug, or are retained by a securing bolt. These coils can be tested individually, or if a complete set of extension leads is available then all cylinders can be tested together.
- With the ignition turned off disconnect the coil from the spark plug. This will inevitably require the multi-plug to disconnected and reconnected. To aid this operation it may be worth spraying the plug with some release oil to prevent any damage to the release tabs.
- Once the coil is disconnected from the spark plug and has its multi-plug refitted, place the extension lead between the spark plug and the coil. Ensure there is a positive ‘click’ into place at both ends. If for any reason there is not a secure fit then the test lead should not be used.
- Ensure that any leads or the coil are not resting on any components that will get hot or rotate.
- If the coil was secured to the engine via a retaining bolt then fit the ‘safety earth’ lead to the coil using the bolt supplied and back to the cylinder head. Again if for any reason this is not possible the test procedure should be terminated. Note: some coils have protective grease on them which prevents the lead making a secure connection, it is advisable to wipe this off and reapply after use.
- If multiple cylinders are to be tested at the same time then follow instructions one to four for the remaining cylinders.
- Double-check all connections before attempting to start the vehicle’s engine.
- Connect the HT pick-up from the automotive kit to the extension lead and select: Automotive > Ignition > Secondary > Secondary CPC (negative fired) from the drop-down menu of the software.
Wasted-spark coil-pack
NOTE: Please read and follow these instructions. Failing to comply with these user notes could result in expensive electrical components being damaged.
This system has a wasted-spark coil pack mounted directly over one cylinder, whilst a plug lead connects the other end of the double-ended coil to another sparkplug. In the case of the Alfa Romeo twin-spark system the second spark plug is within the cylinder head for the same cylinder. Other systems may use a pair of these coils on a four cylinder engine and it may be possible see two of the HT plug leads. As systems vary the user will have to decide on the most appropriate connection method.
- With the ignition turned off disconnect the coil from the sparkplug. This will inevitably require the multi-plug to disconnected and reconnected. To aid this operation it may be worth spraying the plug with some release oil to prevent any damage to the release tabs.
- Once the coil is disconnected from the sparkplug and has its multi-plug refitted, place the extension lead between the sparkplug and the coil. Ensure there is a positive ‘click’ into place at both ends. If for any reason there is not a secure fit then the test lead should not be used.
- If the existing plug lead is not long enough to allow the coil to be disconnected and laid on top of the cylinder head then a second extension lead will be required.
- Ensure that any leads or the coil are not resting on any components that will get hot or rotate.
- If the coil was secured to the engine via a retaining bolt then fit the ‘safety earth’ lead to the coil using the bolt supplied and back to the cylinder head. Again if for any reason this is not possible the test procedure should be terminated.
- If multiple cylinders are to be tested at the same time then follow instructions one to five for the remaining cylinders.
- Double check all connections before attempting to start the vehicle’s engine.
- Connect the HT pick-up from the oscilloscope kit to the extension lead and select:Automotive > Ignition > Secondary > Secondary DIS (negative fired) or DIS (positive fired) from the drop down menu of the software. This will depend on which of the two leads of the coil is tested as one will fire negative and one positive.
